Bode Lab drives a Rigol signal generator and oscilloscope over LAN to sweep frequency, capture gain and phase, and plot the result - the kind of frequency-response measurement normally reserved for dedicated (and expensive) FRA hardware.
DG4202 → DUT → DHO4404 → Gain/Phase plot
Also supports the wider Rigol DHO4000 (12-bit), MSO/DS1000Z/2000/4000/6000/7000 (8-bit), and DG4000-series generator families - see the FAQ for details.
Free · Offline · Windows 10/11 · No VISA runtime required

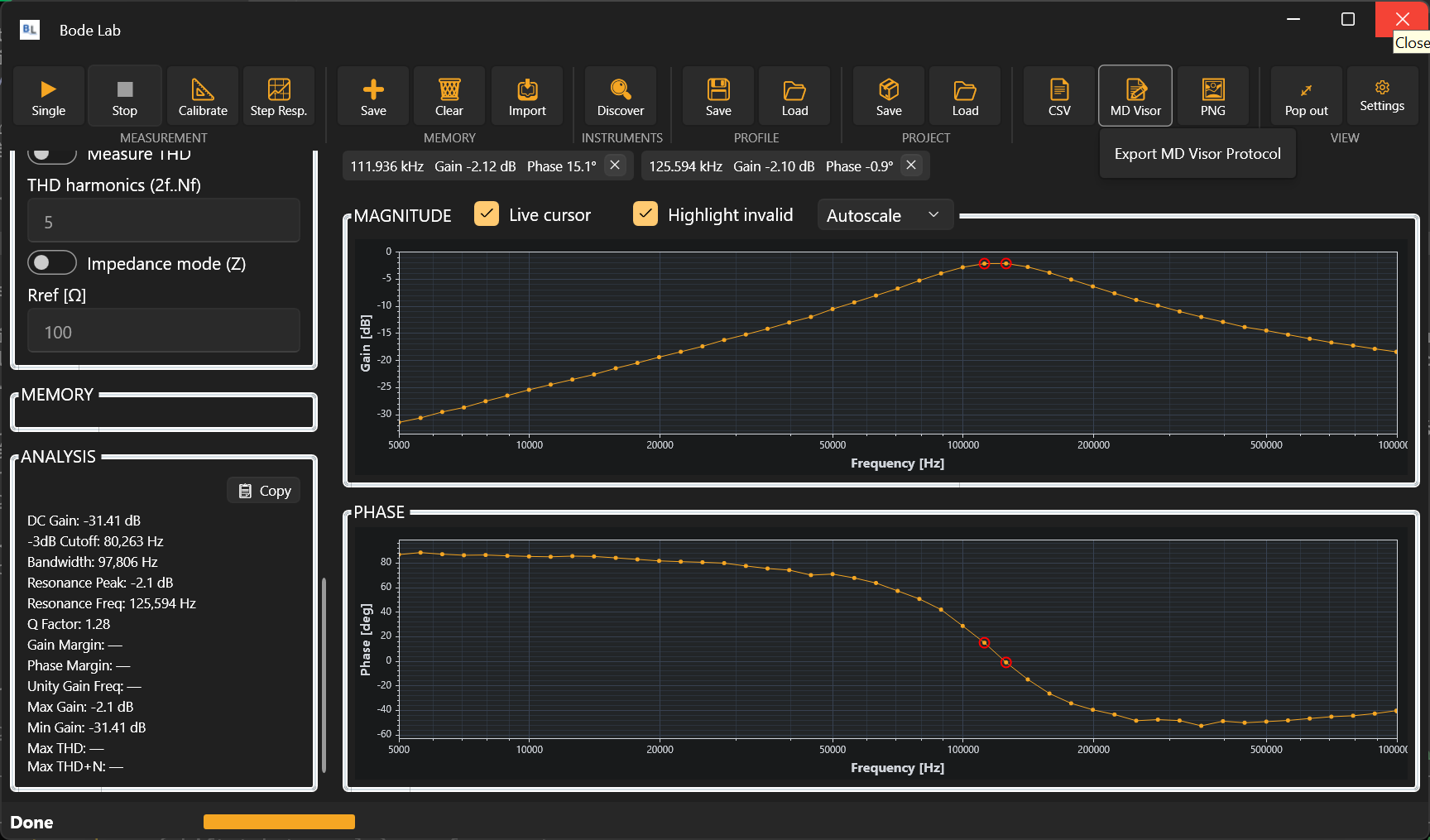

Live sweep, cursors, and automatic analysis. Magnitude and phase plotted side by side, cursors dropped on the resonant peak, and the Analysis panel calling out −3 dB cutoff, bandwidth, resonance frequency, and Q factor as the sweep runs.
A Frequency Response Analyzer (FRA) measures how much a circuit's output amplitude (gain) and timing (phase) shift relative to its input, at each frequency across a sweep - the result is a Bode plot: gain [dB] and phase [deg] plotted against frequency.
It's the standard way to check a switching power supply's feedback loop stability, find a filter's cutoff and rolloff, or characterize how a load's impedance changes with frequency. Dedicated FRA instruments (Bode 100, Venable, Omicron) do this in hardware and cost real money; Bode Lab does the same sweep in software, driving a Rigol generator and scope you may already own.
Set a frequency range and hit Single, and Bode Lab steps the generator through a log or linear sweep, reads the response back from the scope at each point, and plots Gain [dB] and Phase [deg] against frequency as it goes.
Remove the fixture/cable contribution from the measurement before characterizing the actual device under test.
Save a sweep and overlay it against a later one, or import a CSV trace as a reference - compare before/after changes at a glance.
Vertical scale adjusts automatically as gain changes across the sweep; optional averaging trades speed for a cleaner trace.
Measure both channels of a stereo device in one sweep and see the channel mismatch directly.
Reinterpret the same measurement as impedance magnitude against frequency, for filter and load characterization.
Measure harmonic distortion at a chosen frequency alongside the regular sweep.
Switch to a square-wave stimulus and read the time-domain step response directly from the same instrument pair.
Drop markers on the curve and get automatic call-outs for things like -3 dB bandwidth and resonant peaks.
Hand the finished measurement straight to MD Visor as a ready-made protocol section, or export the raw data/chart image.
